Residential Site Plans & Permit Drawings in Florida
Permit-focused residential drawings for pools, sheds, garages, decks, additions, ADUs, new homes and other Florida property improvements.
Permit Sets
Permit Corrections
Florida-Focused
Start With the Property Address and What You Are Planning
You do not need to know every drawing discipline before contacting us. Send the property address, project type, approximate dimensions, and whatever survey, sketches, photos, manufacturer documents or permit comments you already have. We review the available information first and help identify the likely drawing scope.
Choose the project type that best matches your work. Some projects only need a site plan; others may require architectural, structural, MEP, drainage, flood-zone or engineering coordination.
Pool location, setbacks, equipment, deck, enclosure, lot coverage, impervious area and drainage where required.
Site plan, setbacks, floor/elevation documentation, anchorage and structural information where required.
Detached or attached garages, workshops, foundations, framing, anchors, wind design and PE coordination.
Footings, posts, beams, joists, ledgers, stairs, roof framing, connections and structural details.
Site feasibility, architecture, structural, MEP, energy and engineering coordination for accessory dwelling projects.
Existing/proposed conditions, site, architecture, structural, MEP, energy, flood and engineering coordination by scope.
Residential Site Plan Services

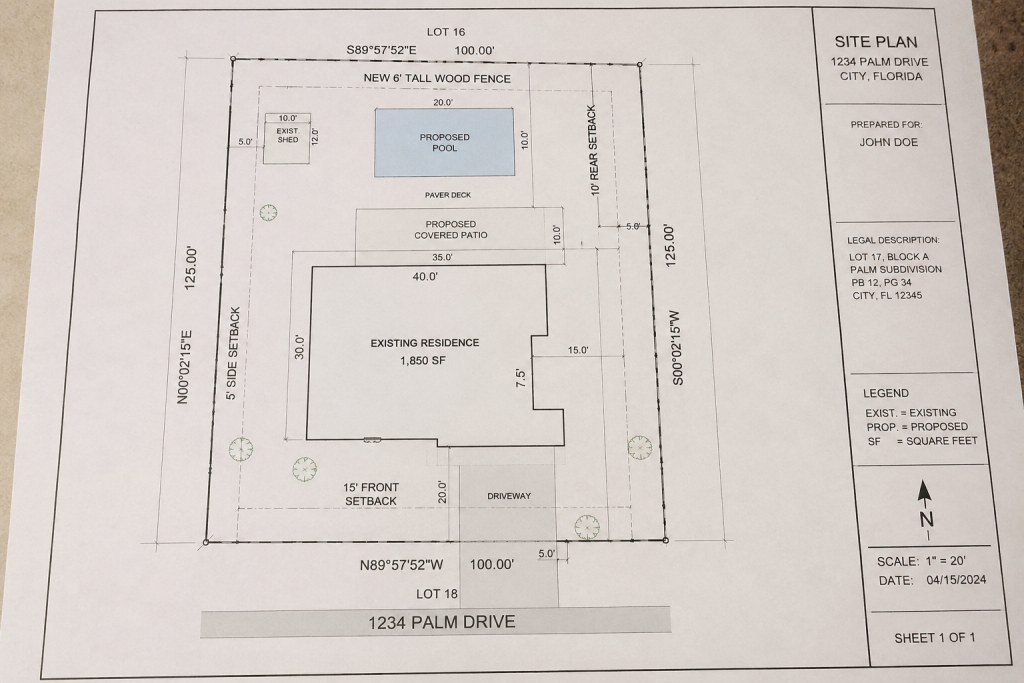

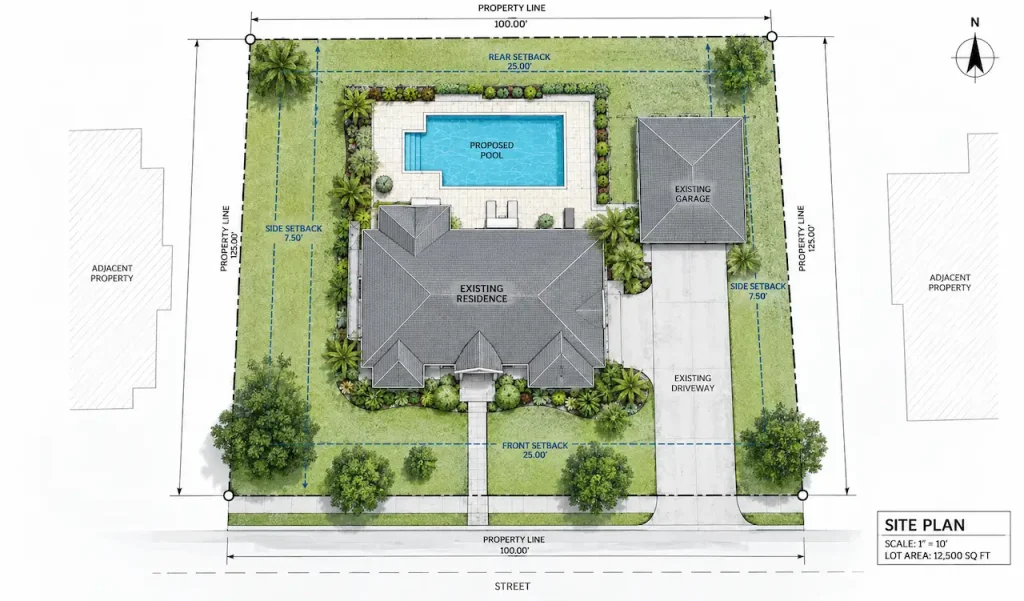

A residential permit site plan shows how existing and proposed improvements relate to the property. Depending on the project, it may include property boundaries, lot dimensions, the house, proposed structures, setbacks, easements, driveways, walkways, pools, decks, patios, sheds, garages, fences, septic/well locations, lot coverage, impervious area, drainage direction, flood information and right-of-way notes.
Residential Site Plans From $89
Residential Site Plan Only vs. Complete Permit Set
Site Plan Only

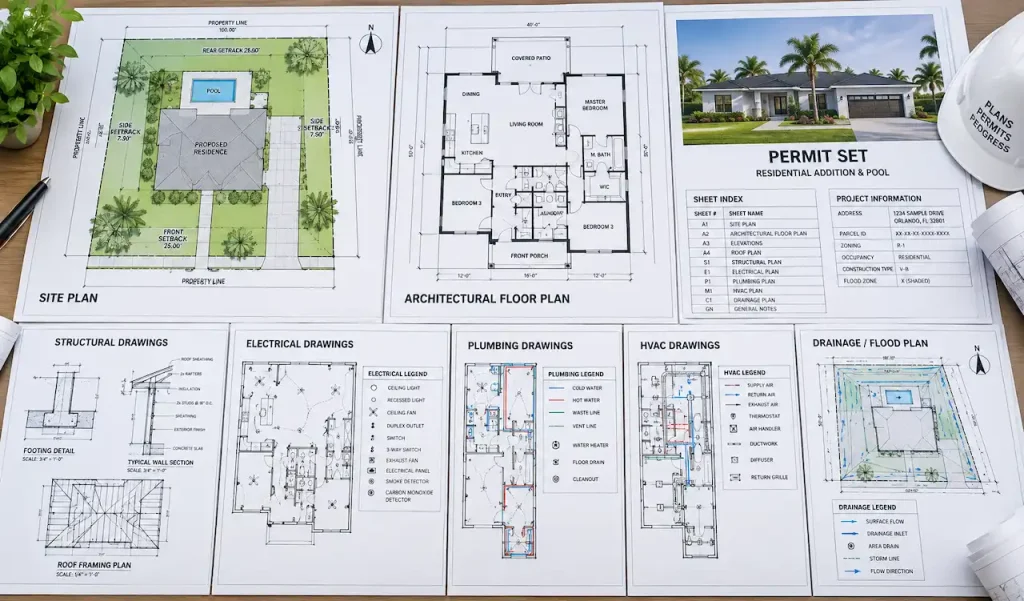

Complete Permit Set
Residential Drawing Disciplines
Order only the discipline you need, or coordinate multiple disciplines into one permit package.
Architectural Permit Drawings
Structural Permit Drawings
MEP Permit Drawings
Florida PE Review
Site Conditions That Can Change the Permit Scope
Grading & Drainage
Flood-Zone Projects
Septic & Well Coordination
Lot Coverage & Impervious Area
Existing Construction & Permit Corrections
After-the-Fact / Legalization Drawings
Permit Corrections & Resubmittals
Recent Florida Permit Projects
Real project experience across residential, commercial, site planning, permit corrections and engineering coordination.
Pavilion on Existing Slab — Panama City, Florida
Structural permit-drawing and Florida PE review coordination for a proposed pavilion over an existing concrete slab in Panama City. The project focused…
View Case Study
Screened Porch Permit Corrections & Greenspace Coordination in Tampa, Florida
Permit-correction project for a residential screened porch in Tampa. City review required a coordinated update to site data, lot coverage, greenspace, tree…
View Case Study
After-the-Fact Shed Legalization & Side-Street Setback Adjustment in Miami, Florida
After-the-fact legalization package for an existing 10 ft × 10 ft prefabricated shed on a Miami corner lot. The drawings documented the…
View Case Study
Commercial Warehouse Change of Use & Interior Build-Out, Doral, FL
Commercial change-of-use and interior build-out for an existing warehouse in Doral. The permit package coordinated site planning, architectural changes, accessibility, life safety,…
View Case Study
Elevated Waterfront Single-Family Residence — Hernando Beach, Florida
Elevated waterfront single-family residence in Hernando Beach requiring coordinated flood-zone, architectural, structural, site, and MEP documentation. The project was developed around FEMA…
View Case StudyMany Residential Projects Can Begin Remotely
For many projects we can begin with an existing survey, county property records, GIS research, aerial imagery, client or contractor measurements, photos, existing plans, manufacturer drawings and permit comments. GIS and property records can support drafting and research, but they do not replace a licensed survey when certified boundary, topographic or elevation information is required.
Send the Address
Tell us exactly where the project is located so we can identify the reviewing jurisdiction.
1
Describe Existing & Proposed Use
Pool, shed, garage, deck, ADU, addition, new home, or other improvement with approximate dimensions.
2
Upload What You Have
Survey, sketches, photos, manufacturer documents or previous permit comments if available.
3
Scope Review & Quote
We review the information and confirm drawing scope, price and delivery before you pay.
4
Drawing Preparation & Review
Drawings are prepared for permit submittal with zoning and building notes by scope.
5
Final Delivery & Revisions
PDF delivery with revision support within scope for reviewer comments.
6
Typical Residential Starting Prices
- Site Plan / Plot Plan: $89+
- Garage / Pool / Screen Site Plan: $149+
- Septic & Well: $250+
- Structural / Garage Full Set / Metal Building: $750+
- MEP: $350+ per discipline
- Limited PE Review: $350+
- Flood-Zone: $350+
- Deck / Porch / Patio: $450+
- Architectural: $500+
- Drainage: $500+
ADUs, additions, new homes and multi-discipline projects are quoted by actual scope. Final pricing depends on project size, existing documentation, jurisdiction and disciplines required.
Why Homeowners & Contractors Choose Site Plans FL
Residential permit documentation centered around Florida jurisdictions and common project types.
One coordinated source when a basic site-plan request grows into architecture, structural, MEP or engineering.
We review what you already have before recommending duplicate drafting or unnecessary disciplines.
If the authority requests corrections to drawings we prepared, revisions within the original agreed scope are supported.
Frequently Asked Questions
Straightforward residential site plans can start around $89. More detailed projects involving drainage, flood information, engineering or additional structures may cost more.
Some projects can begin using existing property information, but a licensed survey may be required where certified boundaries, easements, elevations or other survey information are required.
Many projects can begin remotely using surveys, property records, GIS, photos, measurements and existing drawings. Some projects may still require field verification.
Yes. The exact package depends on the project and can range from a site plan to coordinated architectural, structural, MEP and PE review.
Yes. Send the full correction notice and the exact drawing set reviewed by the jurisdiction.
No. The reviewing authority makes the final permit decision. Our role is to prepare clear, coordinated drawings within the agreed scope and assist with applicable revisions.
Residential Permit Drawing Services Across Florida
We assist homeowners, contractors and builders throughout Florida. City requirements can differ from county requirements, so always send the exact property address.
Tell Us About Your Residential Project
Start with the property address, project type and approximate dimensions. Upload whatever survey, plans, photos, manufacturer documents or permit comments you already have.
For DWG or DXF files: upload a ZIP or send the CAD file after submitting the form.
