Miami-Dade County has Florida’s most active building department. With over 2.7 million residents and a construction market that never really slows down, the Miami-Dade Building Department processes tens of thousands of permit applications per year.
It also has some of Florida’s most specific Miami-Dade site plan requirements, which is why plans that work in other counties sometimes get rejected in Miami-Dade.
Here’s exactly what Miami-Dade requires.
Miami-Dade Building Department Basics
Portal: MDC eBuild at eplan.miamidade.gov
Phone: 786-315-2000
Jurisdiction: Unincorporated Miami-Dade County
For incorporated cities in Miami-Dade (City of Miami, Coral Gables, Homestead, etc.), contact that city’s building department; they have separate processes.
Miami-Dade site plan requirements: Must comply with county zoning, setback, and documentation standards before submission through the ePlan portal.
Miami-Dade Site Plan Format Requirements
Scale: 1″=20′ for most residential lots. Larger lots may use 1″=30′ or 1″=40′. The scale must be clearly labeled.
File format: PDF for digital submission through ePlan.
Paper size equivalent: 24″×36″ standard engineering sheet.
Title block required: Owner name, property address, folio number (parcel ID), preparer name and contact, date of preparation, and scale.
Incorrect parcel data is a common issue flagged under Miami-Dade site plan requirements during plan review.

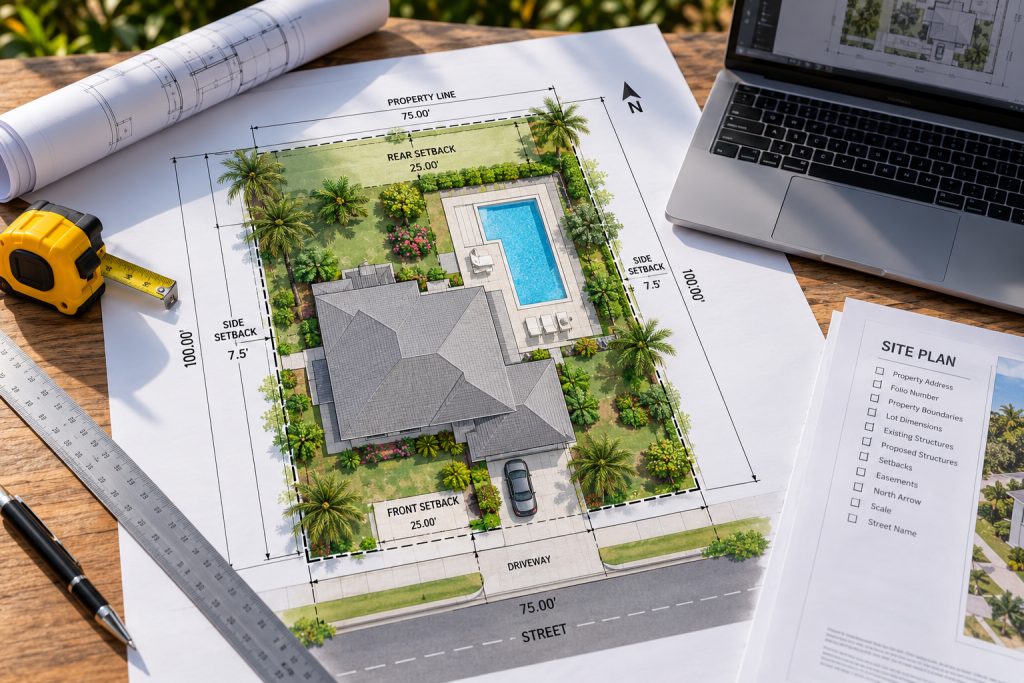

Miami-Dade Required Site Plan Elements
For all residential permits:
- Lot boundaries with dimensions
- Legal description and folio number
- All existing structures shown with dimensions
- Proposed structure with dimensions
- All setbacks labeled (front, rear, both sides)
- North arrow
- Street name and address
For pool permits specifically:
- Pool dimensions (length × width)
- Pool setback from all property lines
- Equipment pad location and dimensions
- Barrier fence shown with gate locations and latch hardware notation
- Impervious surface calculation (Miami-Dade caps residential at 50% in most R-1 zones)
- FEMA flood zone designation is critical, as large portions of Miami-Dade are Zone AE
- If in Zone AE: Base Flood Elevation (BFE) from the current FIRM

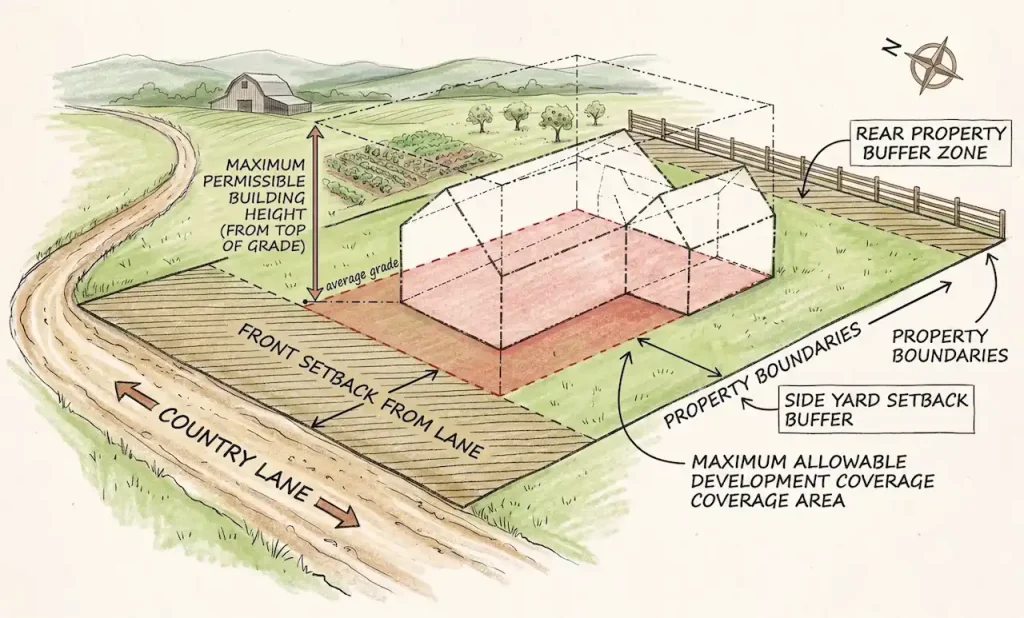

Miami-Dade Setback Requirements
R-1 single-family residential (most common zone):
- Front setback: 25 feet
- Rear setback: 25 feet
- Side setbacks: 7.5 feet (interior lots)
- Corner lots: 15 feet from the street-facing side
Pool setbacks (R-1 zone):
- Pool water’s edge to side/rear property line: 5 feet minimum
- Pool water’s edge to front property line: 15 feet minimum
- Pool to structure/foundation: check the current Miami-Dade zoning code
Miami-Dade HVHZ Requirements
Miami-Dade and Broward are the only Florida counties designated as High-Velocity Hurricane Zone (HVHZ) under the Florida Building Code. While this primarily affects structural and product approval requirements (not site plans directly), it means Miami-Dade projects must follow strict Miami-Dade site plan requirements and HVHZ compliance standards:
Any structure on a Miami-Dade permit must use HVHZ-compliant materials.
Products must have a Miami-Dade Notice of Acceptance (NOA).
Your pool contractor, fence contractor, and shed supplier all need to provide NOA documentation for their products.
This doesn’t change what goes on the site plan, but it affects the overall permit package your contractor submits alongside the plan.
Florida site plan requirements in Miami-Dade are stricter compared to most Florida counties due to the HVHZ designation. Every submission must carefully follow Miami-Dade site plan requirements, including correct scale, flood zone labeling and impervious surface calculations. Failure to meet these Miami-Dade site plan requirements often results in immediate permit rejection or correction notices from the building department.
This is why understanding Miami-Dade site plan requirements is critical before submitting any residential or commercial permit application.
Common Miami-Dade Site Plan Rejection Reasons
Based on my experience with Miami-Dade specifically:
Missing flood zone designation: Miami-Dade is highly flood-prone. They check this every time.
Impervious surface not calculated: Required, and Miami-Dade reviewers check it carefully. A complete Miami-Dade site plan requirements submission must always include accurate impervious surface calculations.
Wrong scale: Using 1″=30′ when the property requires 1″=20′ at their standard.
Folio number missing or wrong: Always verify at miamidade.gov/propertysearch.
Missing NOA reference: For some project types, the site plan notes need to reference applicable product approvals.
Not sure what your project requires? Try our Site Plan Cost Calculator to estimate pricing and identify the right site plan package before submitting your Miami-Dade permit application.
Get Your Miami-Dade Site Plan
Need a permit-ready site plan that meets local submission standards? We create professional drawings designed to help homeowners and contractors submit with confidence.
Standard residential site plans start at $79 and include county-specific requirements, proper formatting, and GIS-verified property data.
For commercial projects or situations requiring professional certification, PE-stamped plans are available starting at $499.
Still have questions? Contact us, and we’ll help you determine the right site plan option for your permit application.
